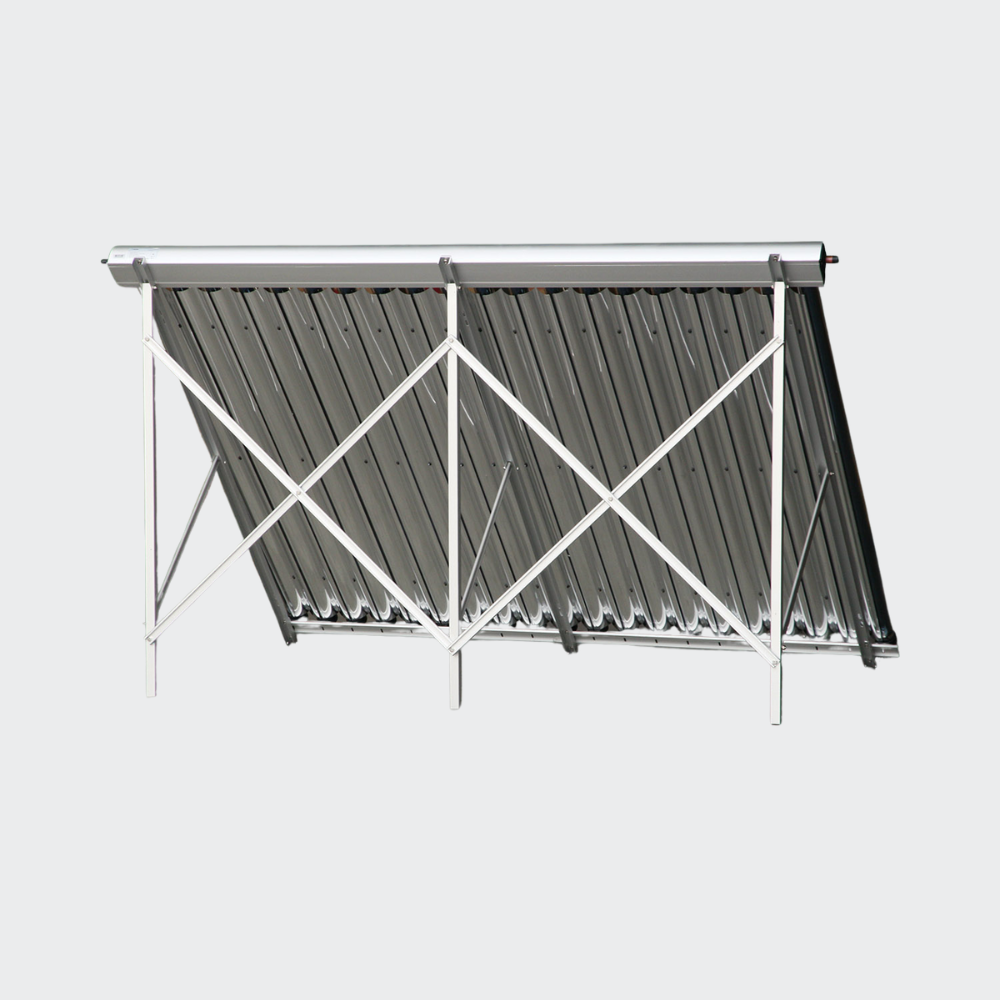

24 Tube Solar Thermal Collector 2.94kW Commercial | Solar Water Heating

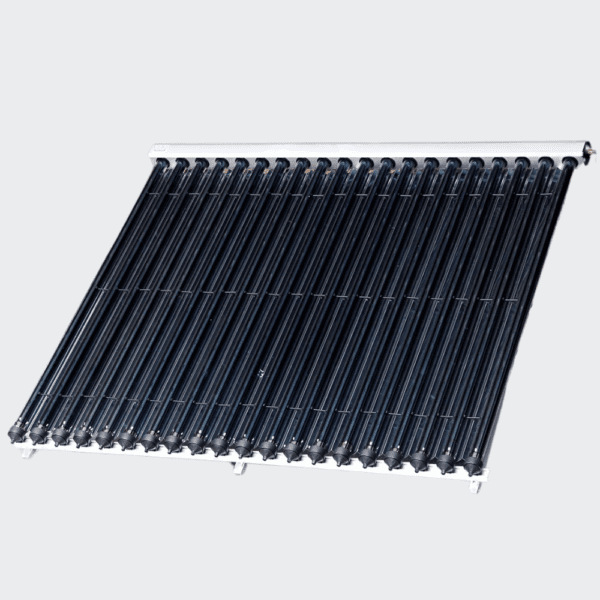

24 Tube Solar Thermal Collector 2.94kW Commercial | Solar Water Heating - Image 2
24 Tube Solar Thermal Collector 2.94kW Commercial | Solar Water Heating - Image 3

24 Tube Solar Thermal Collector 2.94kW Commercial | Solar Water Heating

$2,400.00

Engineered for maximum thermal efficiency and rapid deployment, the SHC24 CPC (Compound Parabolic Concentrator) Heat Pipe Collector is designed for high-performance solar thermal systems in both commercial and industrial applications.

Recommended for commercial and industrial applications, the SHC24 is also suitable for residential systems where hot water demand exceeds the capacity of the SR30 collector—such as multi-bathroom homes, large households, or high-usage scenarios.

Available on backorder

SKU: SHC-24-1800 Category: Solar Water Heating Brand: Consol Solar
  • Description
  • Additional information

Description

Key Features:

High Efficiency with CPC Reflectors
Parabolic reflectors increase solar collection, capturing both direct and diffuse sunlight throughout the day.

Fast and Simple Installation
The patented fast-assembly CPC design makes installation and transportation quicker and more efficient.

360° Solar Absorption
Specially shaped 360° absorbers maximise energy capture from all angles—even in low light or cloudy conditions.

Quick Heat-Up Time
Reaches operating temperature faster than standard solar thermal systems, improving early-day performance.

Compact with High Output
Delivers up to 50% more thermal output than conventional collectors, with less required roof space.

Certified Performance
Compliant with EN12975 and Solar Keymark standards for proven efficiency and safety.

  • System Specifications:
  • System Dimensions | 1917 x 2670 x 133
  • Energy output |  2.94kW
  • Efficiency | 66.8%
  • Header | 35/1.0mm
  • Tubes 14mm
  • Frame Material | Aluminium Alloy
  • Insulation | Glass Wool
  • Net Weight | 79kg

Additional information

Weight 79 kg
Dimensions 191.7 × 267.3 × 13.3 cm
